pyyeti.ode.SolveExp2

class pyyeti.ode.SolveExp2(m, b, k, h, rb=None, rf=None, order=1, pre_eig=False)[source]

2nd order ODE time domain solver based on the matrix exponential.

This class is for solving matrix equations of motion:

\[M \ddot{q} + B \dot{q} + K q = F\]

The 2nd order ODE set of equations are transformed into the 1st order ODE:

\[\begin{split}\left\{ \begin{array}{c} \ddot{q} \\ \dot{q} \end{array} \right\} - \left[ \begin{array}{cc} -M^{-1} B & -M^{-1} K \\ I & 0 \end{array} \right] \left\{ \begin{array}{c} \dot{q} \\ q \end{array} \right\} = \left\{ \begin{array}{c} M^{-1} F \\ 0 \end{array} \right\}\end{split}\]

or:

\[\dot{y} - A y = w\]

The general solution is:

\[y = e^{A t} \left ( y(0) + \int_0^t {e^{-A \tau} w d\tau} \right )\]

By only requiring the solution at every time step and assuming a constant step size of h:

\[y_{n+1} = e^{A h} \left ( y_{n} + \int_0^h {e^{-A \tau} w(t_n+\tau) d\tau} \right )\]

By assuming \(w(t_n+\tau)\) is piece-wise linear (if order is 1) or piece-wise constant (if order is 0) for each step, an exact, closed form solution can be calculated. The function pyyeti.expmint.getEPQ() computes the matrix exponential \(E = e^{A h}\), and solves the integral(s) needed to compute P and Q so that a solution can be computed by:

\[y_{n+1} = E y_{n} + P w_{n} + Q w_{n+1}\]

Unlike for the uncoupled solver SolveUnc, this solver doesn’t need or use the rb input unless static initial conditions are requested when solving equations.

Note that SolveUnc is also an exact solver assuming piece-wise linear or piece-wise constant forces. SolveUnc is often faster than SolveExp2 since it uncouples the equations and therefore doesn’t need to work with matrices in the inner loop. However, it is recommended to experiment with both solvers for any particular application.

Note

The above equations are for the non-residual-flexibility modes. The ‘rf’ modes are solved statically and any initial conditions are ignored for them.

For a static solution:

  • rigid-body displacements = zeros

  • elastic displacments = inv(k[elastic]) * F[elastic]

  • velocity = zeros

  • rigid-body accelerations = inv(m[rigid]) * F[rigid]

  • elastic accelerations = zeros

See also

SolveUnc

Examples

>>> from pyyeti import ode
>>> import numpy as np
>>> m = np.array([10., 30., 30., 30.])    # diag mass
>>> k = np.array([0., 6.e5, 6.e5, 6.e5])  # diag stiffness
>>> zeta = np.array([0., .05, 1., 2.])    # percent damp
>>> b = 2.*zeta*np.sqrt(k/m)*m            # diag damping
>>> h = 0.001                             # time step
>>> t = np.arange(0, .3001, h)            # time vector
>>> c = 2*np.pi
>>> f = np.vstack((3*(1-np.cos(c*2*t)),
...                4.5*(np.cos(np.sqrt(k[1]/m[1])*t)),
...                4.5*(np.cos(np.sqrt(k[2]/m[2])*t)),
...                4.5*(np.cos(np.sqrt(k[3]/m[3])*t))))
>>> f *= 1.e4
>>> ts = ode.SolveExp2(m, b, k, h)
>>> sol = ts.tsolve(f, static_ic=1)

Solve with scipy.signal.lsim for comparison:

>>> A = ode.make_A(m, b, k)
>>> n = len(m)
>>> Z = np.zeros((n, n), float)
>>> B = np.vstack((np.eye(n), Z))
>>> C = np.vstack((A, np.hstack((Z, np.eye(n)))))
>>> D = np.vstack((B, Z))
>>> ic = np.hstack((sol.v[:, 0], sol.d[:, 0]))
>>> import scipy.signal
>>> f2 = (1./m).reshape(-1, 1) * f
>>> tl, yl, xl = scipy.signal.lsim((A, B, C, D), f2.T, t,
...                                X0=ic)
>>> print('acce cmp:', np.allclose(yl[:, :n], sol.a.T))
acce cmp: True
>>> print('velo cmp:', np.allclose(yl[:, n:2*n], sol.v.T))
velo cmp: True
>>> print('disp cmp:', np.allclose(yl[:, 2*n:], sol.d.T))
disp cmp: True

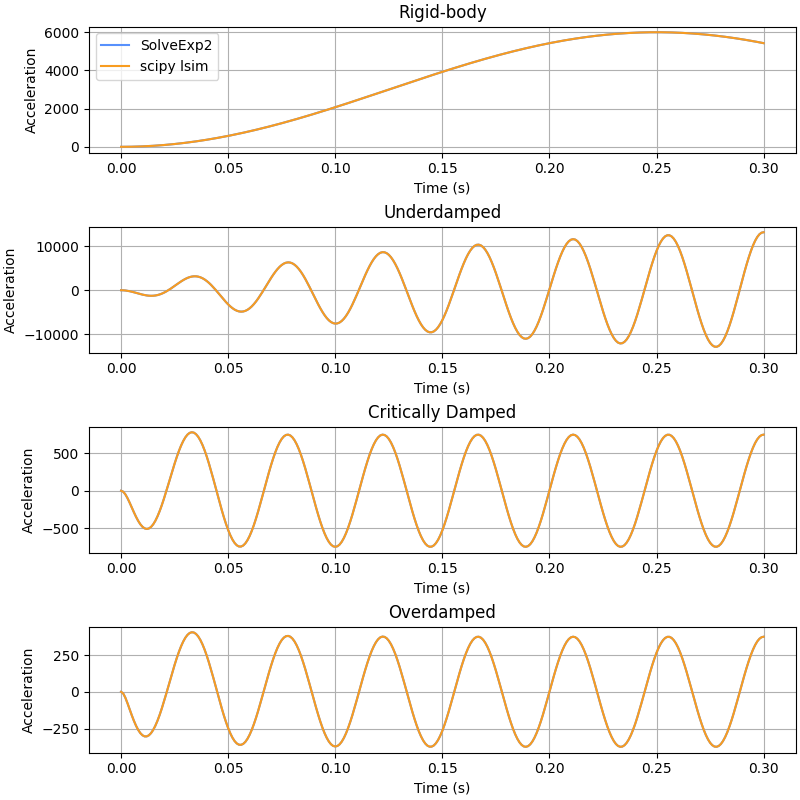

Plot the four accelerations:

>>> import matplotlib.pyplot as plt
>>> fig = plt.figure('Example', figsize=[8, 8], clear=True,
...                  layout='constrained')
>>> labels = ['Rigid-body', 'Underdamped',
...           'Critically Damped', 'Overdamped']
>>> for j, name in zip(range(4), labels):
...     _ = plt.subplot(4, 1, j+1)
...     _ = plt.plot(t, sol.a[j], label='SolveExp2')
...     _ = plt.plot(tl, yl[:, j], label='scipy lsim')
...     _ = plt.title(name)
...     _ = plt.ylabel('Acceleration')
...     _ = plt.xlabel('Time (s)')
...     if j == 0:
...         _ = plt.legend(loc='best')
../../_images/pyyeti-ode-SolveExp2-1.png
__init__(m, b, k, h, rb=None, rf=None, order=1, pre_eig=False)[source]

Instantiates a SolveExp2 solver.

Parameters:

  • m (1d or 2d ndarray or None) – Mass; vector (of diagonal), or full; if None, mass is assumed identity

  • b (1d or 2d ndarray) – Damping; vector (of diagonal), or full

  • k (1d or 2d ndarray) – Stiffness; vector (of diagonal), or full

  • h (scalar or None) – Time step; can be None if only want to solve a static problem

  • rb (1d array or None; optional) – Index or bool partition vector for rigid-body modes. Set to [] to specify no rigid-body modes. If None, the rigid-body modes will be automatically detected by this logic for uncoupled systems:

    rb = np.nonzero(abs(k).max(0) < 0.005)[0]

    And by this logic for coupled systems:

    rb = ((abs(k).max(axis=0) < 0.005) &
      (abs(k).max(axis=1) < 0.005) &
      (abs(b).max(axis=0) < 0.005) &
      (abs(b).max(axis=1) < 0.005)).nonzero()[0]

    Note

    rb applies only to modal-space equations. Use pre_eig if necessary to convert to modal-space. This means that if rb is an index vector, it specifies the rigid-body modes after the pre_eig operation. See also pre_eig.

    Note

    Unlike for the SolveUnc solver, rb for this solver is only used if using static initial conditions in SolveExp2.tsolve().

  • rf (1d array or None; optional) – Index or bool partition vector for residual-flexibility modes; these will be solved statically. As for the rb option, the rf option only applies to modal space equations (possibly after the pre_eig operation).

  • order (integer; optional) – Specify which solver to use:

    • 0 for the zero order hold (force stays constant across time step)

    • 1 for the 1st order hold (force can vary linearly across time step)

  • pre_eig (bool; optional) – If True, an eigensolution will be computed with the mass and stiffness matrices to convert the system to modal space. This will allow the automatic detection of rigid-body modes which is necessary for specifying “static” initial conditions when calling the solver. No modes are truncated. Only works if stiffness is symmetric/hermitian and mass is positive definite (see scipy.linalg.eigh()). Just leave it as False if the equations are already in modal space or if not using “static” initial conditions.

Notes

The instance is populated with the following members:

Member

Description

m

mass for the non-rf modes

b

damping for the non-rf modes

k

stiffness for the non-rf modes

m_orig

original mass

b_orig

original damping

k_orig

original stiffness

h

time step

rb

index vector or slice for the rb modes

el

index vector or slice for the el modes

rf

index vector or slice for the rf modes

_rb

index vector or slice for the rb modes relative to the non-rf modes

_el

index vector or slice for the el modes relative to the non-rf modes

nonrf

index vector or slice for the non-rf modes

kdof

index vector or slice for the non-rf modes

n

number of total DOF

rbsize

number of rb modes

elsize

number of el modes

rfsize

number of rf modes

nonrfsz

number of non-rf modes

ksize

number of non-rf modes

invm

decomposition of m for the non-rf, non-rb modes

krf

stiffness for the rf modes

ikrf

inverse of stiffness for the rf modes

unc

True if there are no off-diagonal terms in any matrix; False otherwise

order

order of solver (0 or 1; see above)

E_vv

partition of “E” which is output of pyyeti.expmint.getEPQ()

E_vd

another partition of “E”

E_dv

another partition of “E”

E_dd

another partition of “E”

P, Q

output of pyyeti.expmint.getEPQ(); they are matrices used to solve the ODE

pc

True if E*, P, and Q member have been calculated; False otherwise

pre_eig

True if the “pre” eigensolution was done; False otherwise

phi

the mode shape matrix from the “pre” eigensolution; only present if pre_eig is True

The E, P, and Q entries are used to solve the ODE:

for j in range(1, nt):
    d[:, j] = E*d[:, j-1] + P*F[:, j-1] + Q*F[:, j]

Methods

__init__(m, b, k, h[, rb, rf, order, pre_eig])

Instantiates a SolveExp2 solver.

finalize([get_force])

Finalize time-domain generator solution.

fsolve()

'Abstract' method to solve frequency-domain equations

generator(nt, F0[, d0, v0, static_ic])

Python "generator" version of SolveExp2.tsolve(); interactively solve (or re-solve) one step at a time.

get_f2x(phi[, velo])

Get force-to-displacement or force-to-velocity transform

tsolve(force[, d0, v0, static_ic])

Solve time-domain 2nd order ODE equations
