ode - time and frequency domain ODE solvers

This and other notebooks are available here: https://github.com/twmacro/pyyeti/tree/master/docs/tutorials.

Primarily, the pyyeti.ode module provides tools for solving 2nd order matrix equations of motion in both the time and frequency domains. This notebook demonstrates solving time-domain equations of motion.

Notes:

  • Some features depend on the equations being in modal space (particularly important where there are distinctions between the rigid-body modes and the elastic modes).

  • The time-domain solvers all depend on constant time step.

First, do some imports:

import numpy as np
import matplotlib.pyplot as plt
from pyyeti import ode

Some settings specifically for the jupyter notebook.

%matplotlib inline
plt.rcParams['figure.figsize'] = [6.4, 4.8]
plt.rcParams['figure.dpi'] = 150.

Setup a simple system

This system is not fixed to ground so it does have a rigid-body mode. This system is from the frclim.ntfl example.

        |--> x1       |--> x2        |--> x3        |--> x4
        |             |              |              |
     |----|    k1   |----|    k2   |----|    k3   |----|
 Fe  |    |--\/\/\--|    |--\/\/\--|    |--\/\/\--|    |
====>| 10 |         | 30 |         |  3 |         |  2 |
     |    |---| |---|    |---| |---|    |---| |---|    |
     |----|    c1   |----|    c2   |----|    c3   |----|

Define the mass, damping and stiffness matrices:

M1 = 10.
M2 = 30.
M3 = 3.
M4 = 2.
c1 = 15.
c2 = 15.
c3 = 15.
k1 = 45000.
k2 = 25000.
k3 = 10000.

MASS = np.array([[M1, 0, 0, 0],
                 [0, M2, 0, 0],
                 [0, 0, M3, 0],
                 [0, 0, 0, M4]])
DAMP = np.array([[c1, -c1, 0, 0],
                 [-c1, c1+c2, -c2, 0],
                 [0, -c2, c2+c3, -c3],
                 [0, 0, -c3, c3]])
STIF = np.array([[k1, -k1, 0, 0],
                 [-k1, k1+k2, -k2, 0],
                 [0, -k2, k2+k3, -k3],
                 [0, 0, -k3, k3]])

Define a time vector and a forcing function:

h = .001
t = np.arange(0, 2, h)
F = np.zeros((4, len(t)))
F[0, :200] = np.arange(200)
F[0, 200:400] = np.arange(200)[::-1]
F[0, 400:600] = np.arange(0, -200, -1)
F[0, 600:800] = np.arange(0, -200, -1)[::-1]

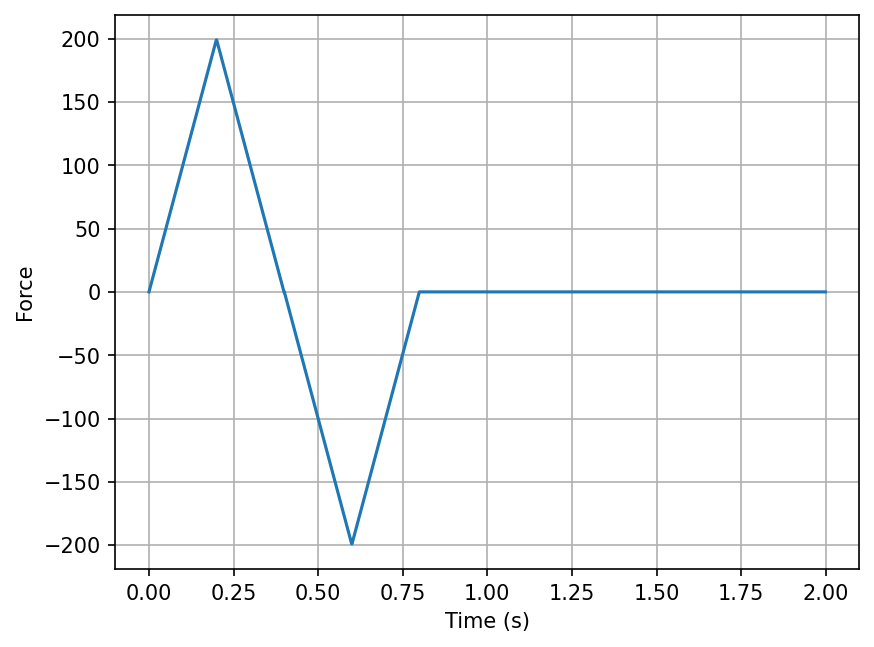

plt.plot(t, F[0])
plt.xlabel('Time (s)')
plt.ylabel('Force')
plt.grid(True)
../_images/temp_ode_11_0.png

The pyyeti.ode module was originally designed only to solve systems that were in modal space via the pyyeti.ode.SolveUnc solver. Such equations are typically uncoupled, unless the damping is coupled. This is an exact solver assuming piece-wise linear forces. For the current problem, which is not in modal space, the solver now accepts the pre_eig=True option which will internally transform the problem to modal space.

You can also choose the pyyeti.ode.SolveExp2 solver for the current problem. This solver is based on the matrix exponential and is more general than pyyeti.ode.SolveUnc. For uncoupled equations however pyyeti.ode.SolveUnc is likely significantly faster. Note, even for the pyyeti.ode.SolveExp2 solver, the equations will need to be put in modal space (via the pre_eig=True) if you wish to use static initial conditions.

The pyyeti.ode.SolveUnc solver

Since this system is not in modal space, we’ll use the pre_eig=True.

ts = ode.SolveUnc(MASS, DAMP, STIF, h, pre_eig=True)

At this point, many pre-calculations are done and the ts object is ready to be called (repeatedly if necessary) to solve the equations of motion with arbitrary forces and initial conditions. The time domain solver is called via the method tsolve:

sol = ts.tsolve(F)

sol is a SimpleNamespace with the members:

  • .a - acceleration

  • .v - velocity

  • .d - displacement

  • .t - time vector

  • .h - time step

Plot the acceleration responses (assume metric units):

for j in range(sol.a.shape[0]):
    plt.plot(sol.t, sol.a[j], label='Acce {:d}'.format(j+1))
plt.legend(loc='best')
plt.xlabel('Time (s)')
plt.ylabel(r'Acceleration (m/$sec^2$)')
plt.grid(True)
../_images/temp_ode_18_0.png

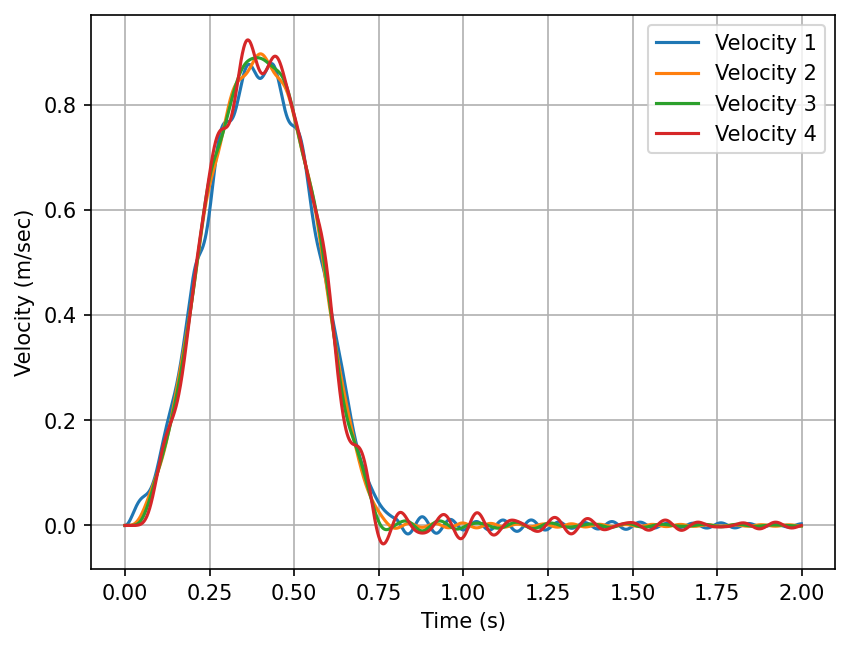

Plot the velocities:

for j in range(sol.v.shape[0]):
    plt.plot(sol.t, sol.v[j], label='Velocity {:d}'.format(j+1))
plt.legend(loc='best')
plt.xlabel('Time (s)')
plt.ylabel('Velocity (m/sec)')
plt.grid(True)
../_images/temp_ode_20_0.png

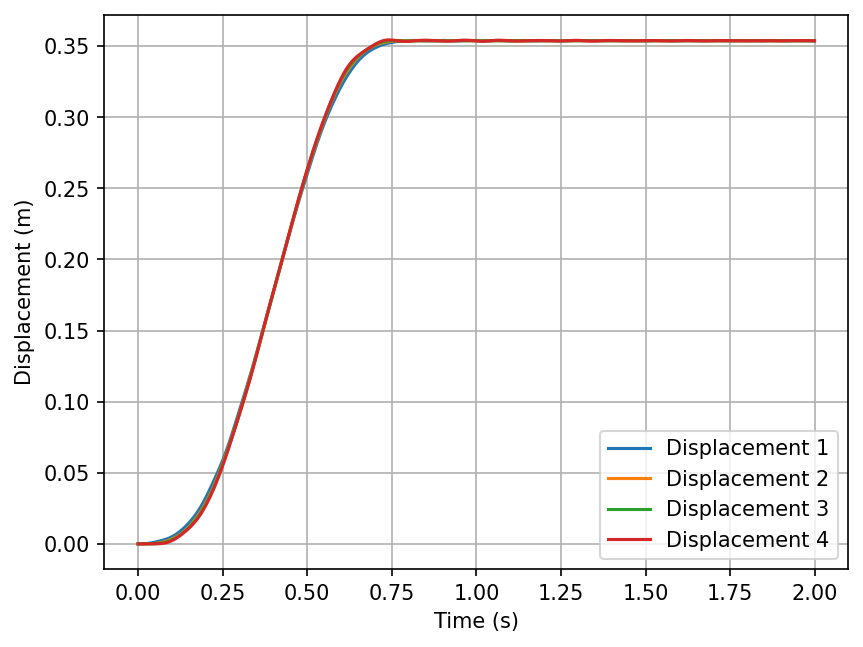

Plot the displacements:

for j in range(sol.d.shape[0]):
    plt.plot(sol.t, sol.d[j], label='Displacement {:d}'.format(j+1))
plt.legend(loc='best')
plt.xlabel('Time (s)')
plt.ylabel('Displacement (m)')
plt.grid(True)
../_images/temp_ode_22_0.png

The pyyeti.ode.SolveExp2 solver

For demonstration, we’ll solve the same system using the pyyeti.ode.SolveExp2 solver. Since we’re not using static initial conditions, we don’t need to use the pre_eig option. In this case, not using it would be more efficient since it would do less work. For demonstration, we’ll use both:

ts1 = ode.SolveExp2(MASS, DAMP, STIF, h)
ts2 = ode.SolveExp2(MASS, DAMP, STIF, h, pre_eig=True)

Solve with both solvers and demonstrate they give the same results:

sol1 = ts1.tsolve(F)
sol2 = ts2.tsolve(F)

assert np.allclose(sol1.a, sol2.a)
assert np.allclose(sol1.v, sol2.v)
assert np.allclose(sol1.d, sol2.d)

Show the results are also the same as the pyyeti.ode.SolveUnc solver:

assert np.allclose(sol1.a, sol.a)
assert np.allclose(sol1.v, sol.v)
assert np.allclose(sol1.d, sol.d)
